Q: How to add reading coil to SVG 149?

What you need:

  • Crimping tool
  • Add-on cable SVG 149
  • Reading coil
  • Gold pin 2x into reading coil (bigger pin)
  • Silver pin 2x into terminal (smaller pin)
  • Cable 0.25mm
  • Pliers

1. Use pliers to remove the cable ties on blue terminal.

SuperVAG: How to add reading coil to SVG 149

2. Prepare 2x gold pin, 2x silver pin, 2x cable and crimping tool.

SuperVAG: How to add reading coil to SVG 149

3. Use crimping tool to mount pins on the cable.

SuperVAG: How to add reading coil to SVG 149

SuperVAG: How to add reading coil to SVG 149

SuperVAG: How to add reading coil to SVG 149

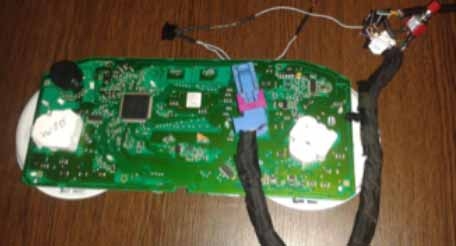

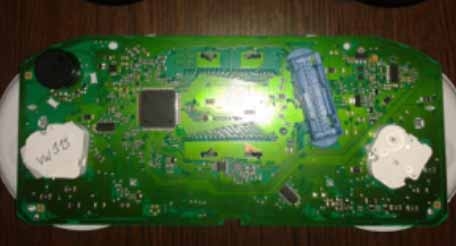

4. On 32 pin terminal connect bigger silver pins on position 7 and 8. You can commute this two cables.

SuperVAG: How to add reading coil to SVG 149

SuperVAG: How to add reading coil to SVG 149

SuperVAG: How to add reading coil to SVG 149

5. Connect two gold pins into reading coil. You can commute them.

SuperVAG: How to add reading coil to SVG 149

6. Return back cover and fix it with cable ties.

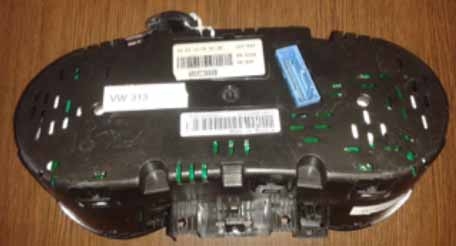

SuperVAG: How to add reading coil to SVG 149

SuperVAG: How to add reading coil to SVG 149

Reading coil can be used to reading of key transponder and to key learning on a table. For example you do not need to put in dashboard into a car to try key learning after solving of All Key Lost Situation. You can try it first on a table.

DOWNLOAD PDF





Q: How do I use SuperVAG with MiraClone?

SuperVAG allows you to read all of the necessary information from car via OBD and creates a bin file. After that the obtained data are loaded to MiraClone that lets you finish the process by writing the extracted bin data onto new or existing transponder:

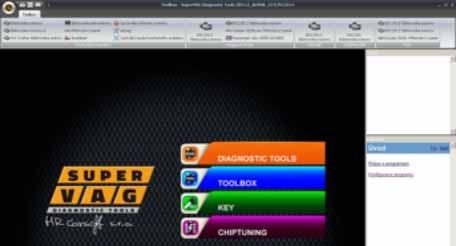

1.1 Use SuperVAG. Select Car’s Make & Model.

1.2PLUG IT. Click ‘Key Programming’ and ‘Start Dianostics’

1.3 All the information will appear on the right side. Click ‘Immobiliser Status’. You will see that the key in the ignition is not a programmed key.
2.1READ IT. Click on ‘Retrieve data on transponder’. Turn the ignition ‘OFF’ and ‘ON’. Press ‘Okay’.

2.2The Component and Security data will appear on the right side.

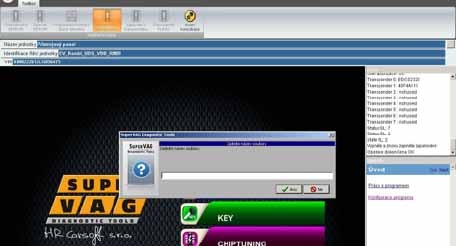

2.3 Save the file

3.1MIRACLONE IT. Select ‘Main’ and click ‘Identify & Read’. You can see that it is not a can transponder.

3.2 Once information is read go to ‘Programmer’ to make a can transponder for the type of car by clicking ‘Transponder’.
3.3 Click ‘Eeprom’. You can see that 5 keys have been coded
3.4 Select a key. Choose ID48W and click ‘Transponder’

3.5 Check the new key in the car by going back to SuperVAG and selecting ‘Immobiliser status’.

Q: How do I make lost keys using SuperVAG?

Applicable to: VAG after 2010

Required: SuperVAG Key + license 2014, notebook, AVON adapter, conector SuperVAG 149

There are four types of supported PCB. Two required AVON adapter ‘Type’ A or ’Type B’. Next two required to attach pin as marked on inclosed pictures.

For lost key solution please follow these steps:

1. Remove dashboard from car.
2. Remove rear cover from dashboard.
3. Plug in SuperVAG 149 fixture with blue connector + AVON fixture. And follow on screen instructions in SuperVag
4. Open SuperVAG KEY and select xxxxxxx xxxx transpondéru
5. Follow on screen instructions on use of cable 149
6. Follow normal instructions for add key scenario in pc as the instrument is in Service Mode. Use MiraClone to make a key from bin.

7. Now put instrument back to car and start with new key.
