Magic 1S Compact Ring Engraver
Click for larger image and other views

Magic 1S Compact Ring EngraverMagic 1S Compact Ring EngraverMagic 1S Compact Ring Engraver

Magic 1S Compact Ring Engraver

By Red Technologies  Ref: M1S

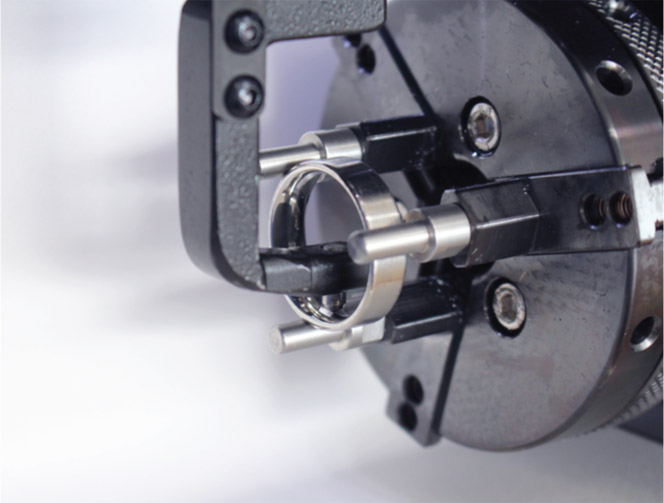

Magic-1S is a CNC engraver for marking on inner and outer of rings.
It’s light, sophisticated, less noise, portable and easy to use for anyone.
Also, it has wireless controlled Bluetooth, compatible with tablet.


Main Features

  • Wireless controlled bluetooth with compatible tablet. (Maigc Touch)
  • Supports touch-interface with tablet. (tablet purchased separately)
  • Our system supports customers to design their own with tablets.
  • Improved portability with lighter aluminum body.

  • Internal electric switch
  • Sophisticated and luxurious design.
  • Engraves almost every kind of metal.(gold, silver, bronze, jewelry, stainless and etc.)
  • Compact sized engraver can fit in any small areas.
  • Easy coordination with laser pointer
  • Highly durable diamond-tipped drill reduces maintenance cost.
  • Provides upgraded program. (MagicArt-5)

PRODUCT SPECIFICATION

DivisionContentsDivisionContents
Size229mm(W)x 279mm(H) x 315mm(D)
(inch 9.0(W) x 10.9(H) x 12.4(D))
Resolution0.005mm(XY) / 0.00125mm(Z) / 0.028125(A)
Tool TypeDiamondTool Diameter3.175mm
Weight13Kg(29lb)RotaryOuter Diameter 32mm / Inner Diameter 34mm
Power Consumtion12WPower SupplyAC 100~240V 50/60Hz
Bluetooth StandardV2.1Transmission Output+2dBm(Typical)
Frequency2.4GHz ISM BandCommunication Distance10M


PleaseLog inorRegisterto View Our Prices
